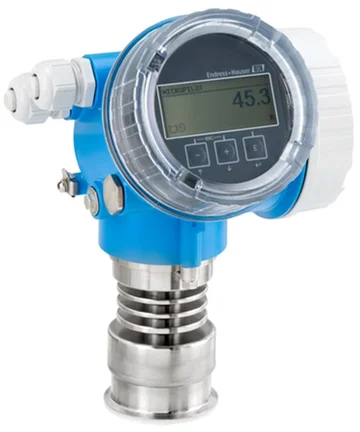

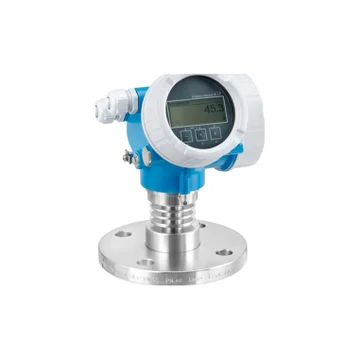

E+H Micropilot FMR52 Radar Level Transmitter

Features

• Completely PTFE-encapsulated horn antenna
• HistoROM data management
• Heartbeat Technology
• Flush-mounted with cladded flange
• -321 to 392°F (-196 to 200°C) temperature range
• -14.5 to 362psi (-1 to 25bar) pressure range
• 40m (131ft), 60m (197ft) max measuring range
• ±2mm accuracy
• 26GHz K-band

The E+H Micropilot FMR52 Radar Level Transmitter is designed for applications in aggressive liquids. The Micropilot FMR52 offers extraordinary advantages with its completely PTFE-filled and flush-mounted horn antenna. The FMR52 is also the sensor for hygiene-sensitive applications in the food and life sciences industry - ASME BPE, USP Class VI, 3-A and EHEDG approvals. Micropilot is used for continuous, non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.
