Features
- Process temperature
- -5 to 120°C (23 to 248°F)
- Max. 140°C at 6bar (284°F at 87psi) for max. 45min for sterilization applications
- Process pressure
- 17bar abs at 20°C (247psi at 68°F)
- 9bar abs at 120°C (131psi at 248°F)
- Material
- Process connection: stainless steel 1.4435 (316L)
- Sensor element: platinum and ceramic
- 1 µS/cm to 500 mS/cm measurement range

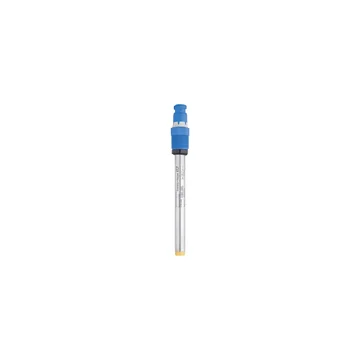

The E+H Memosens CLS82E Conductivity Sensor allows for monitoring of core processes and final rinse using one sensor. Memosens 2.0 digital technology provides extended storage of process and sensor data, facilitating lab calibration and predictive maintenance, and allowing for enhanced IIoT services. The sensor's compact design allows it to fit small pipe diameters and other space-limited installations. International explosion protection approvals such as ATEX, FM, CSA and NEPSI allow for hazardous area use. The sensor is sterilizable and autoclavable. Hygienic materials certified and approved by EHEDG, 3-A and FDA allow for compliance with GMP standards.
Applications
Phase separation
Downstream processing
Fermentation
Chromatography
Ultrafiltration
Final rinse in pharmaceutical applications
