Features
- Rod or rope probe
- -40 to 302°F (-40 to 150°C) process temperature
- -14.5 to 232 psi (-1 to 16 bar) process pressure
- Maximum measuring distance
- Rod: 13ft (4m), min DK>1.4
- Rope:
- 66 to 82ft (20 to 25m), min DK>1.4
- 82 to 98ft (25 to 30m), min DK>1.6
- 98 to 148ft (30 to 45m), min DK>1.9
- ±0.08in (±2mm) accuracy
- International explosion protection certificates
- 3-point and 5-point linearity protocol
- Bluetooth wireless technology
- Heartbeat technology

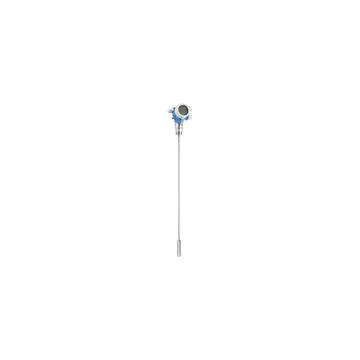

The E+H Levelflex FMP57 guided wave radar level transmitter is designed to meet the highest demands in bulk solids, and is best suited for measurements in high silos, bunkers or stockpiles. The Levelflex FMP57 guided radar is used for continuous level measurement in powdery to granular bulk solids. Dust, filling noises, temperature layers and gas layers do not affect the measurement.
The FMP57 also offers HistoROM data management for fast and easy commissioning, maintenance and diagnostics, and Heartbeat technology for cost-effective and safe plant operation during the entire life cycle.
