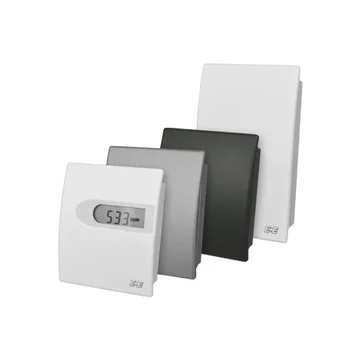

E+E EE800 CO2 / Temperature / RH Transmitter

Features

• CO2 range:
  • 0 to 2000 ppm
  • 0 to 5000 ppm
• 10 to 90% RH range
• -4 to 140°F (-20 to 60°C) temp range
• ±(50ppm 2%/3%) CO2 accuracy
• Humidity accuracy:
  • ±3 % RH (30 to 70% RH)
  • ±5 % (10 to 90% RH)
• CO2 auto calibration
• BACnet, Modbus or analogue outputs
• Temperature compensation
• Highly insensitive to pollution
• Snap-on enclosure

The E+E EE800 CO2 / Temperature / RH Transmitter accurately measures CO2, temperature and relative humidity in HVAC applications. The EE800 also calculates the dew point temperature. The EE800 incorporates the E+E dual wavelength NDIR CO2 sensor, which compensates for aging effects, is highly insensitive to pollution and offers outstanding long term stability. A multiple point CO2 and temperature factory adjustment procedure leads to excellent CO2 measurement accuracy over the entire temperature working range. Applications for the EE800 include: Demand controlled ventilation Heating, ventilation and air conditioning Building management
