Features
- Hot film technology
- Miniature Air Velocity Transmitter
- Designed for measurements of low velocities
- Working range:
- 0 to 200ft/min (0 to 1m/s)
- 0 to 400ft/min (0 to 2m/s)
- Outputs 0 to 5V or 0 to 10V
- 4s response time
- Polycarbonate housing
- IP40 protection

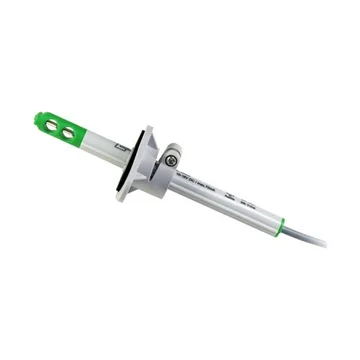

The E+E EE576 Air Velocity Transmitter is a compact air velocity transmitter designed for measurement of lowest velocity. Equipped with a newly developed sensor head and utilizing the proven E+E hot-film element, already tested a million times in the automotive industry, these transmitters are less sensitive to dust and dirt than conventional hot-wire elements. This is reflected in the excellent reproducibility and proven long-term stability of the measuring results. The factory calibration with a special wind tunnel for lowest velocity ensures optimal precision and maximum sensitivity. The EE576 can be mounted fast and easily. The alignment strip along the probe's tube and the matching mounting flange determine the orientation of the sensor probe. The mounting flange allows for an infinitely variation of the depth of the sensor probe. The electronics integrated in the probe tube provide a linear analog signal of 0-5V or 0-10V for the velocity range 0 to 200ft/min (0 to 1m/s) or 0 to 400ft/min (0 to 2m/s). Applications for the EE576 include: Laminar flow control Filter monitoring Exhaust systems Glove boxes
