Features
- Temp measuring range: -40 to 140°F or -40 to 140°C
- RH% measuring range: 0 to 100%
- Accuracy: ±0.2 °C (0.34°F)
- 0 to 5V, 0 to 10V and 4-20mA outputs available
- Wall, duct and remote probe versions
- IP65 / NEMA 4 enclosure
- 1, 2 or 3 line display, user configurable

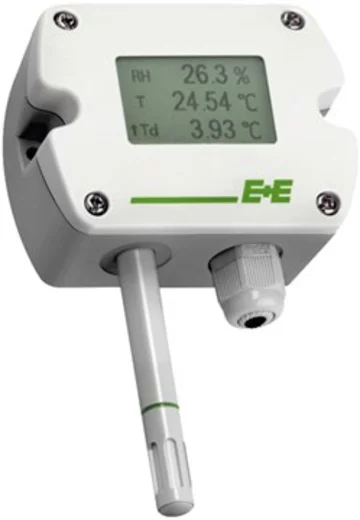

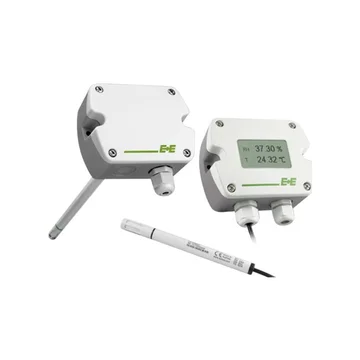

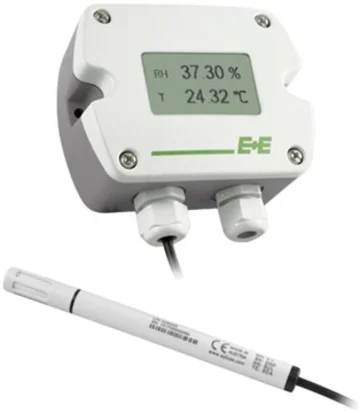

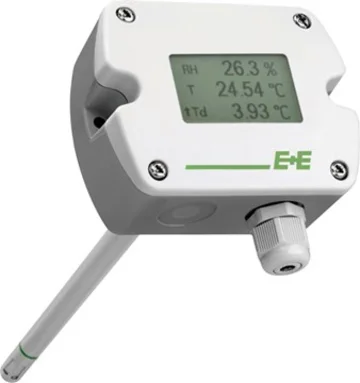

The E+E EE210 Humidity and Temperature Transmitter meets the highest requirements in demanding climate control applications. Besides highly accurate measurement of relative humidity and temperature, EE210 calculates dew point temperature, absolute humidity and mixing ratio. The EE210 is available as wall or duct mounted as well as with remote probe. The enclosure minimizes installation costs and provides outstanding protection against contamination and condensation. All measured and calculated values are available on the BACnet MS/TP or Modbus RTU interface; two of the measured and calculated values are available on the analog voltage or current outputs, while up to three values can be shown simultaneously on the optional display. Excellent performance of EE210 in polluted, aggressive environment is ensured by the combination of completely protective encapsulated measurement electronics inside the sensing probe and the long-term stable HCT01 sensor with E+E proprietary coating. Applications for the EE210 include: Agriculture Stables, incubators, hatchers Green houses Storage rooms and cooling chambers Indoor pools Demanding climate control
