Features
- Bi-directional flow measuring range
- Data log up to 8 records
- Flow accuracy:
- Medium/large pipes: ±0.5% 0.049 ft/s (0.015 m/s)
- Small pipes: ±1% ± 0.03 ft/s (0.009 m/s)
- ±1% of full scale
- 0.2% above 1.5 ft/s repeatability
- Large, easy-to-read graphical display

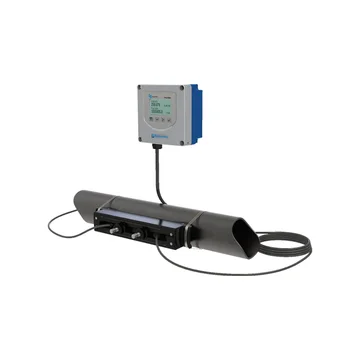

The Dynasonics TFX-5000 Ultrasonic Flow Meter measures volumetric flow and heating/cooling energy rates in clean liquids as well as those with small amounts of suspended solids or aeration, such as surface water or raw sewage. TFX-5000 flow and energy meters clamp onto the outside of pipes and do not contact the internal liquid. The TFX-5000 meter is available in a variety of configurations that permit the user to select a meter with features suitable to meet particular application requirements. By clamping onto the outside of pipes, the meters have inherent advantages over other flow meter technologies, including: Reduced installation time and cost Non-invasive, non-contact measurement Continued operation during installation—no need to shut down the process No pressure head loss No moving parts to maintain or replace
