Features
- 0.25 up to 100 in w.c. measuring range
- ±0.5% accuracy
- Air and non-combustible, compatible gases
- ABS plastic housing material
- Pressure, velocity or volumetric flow operation
- Two SPDT control relays
- Modbus communications

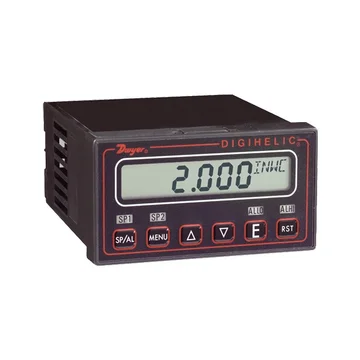

The Dwyer Digihelic Series Differential Pressure Controller is a 3-in-1 instrument possessing a digital display gauge, control
relay switches, and a transmitter with current output. The Digihelic controller is the ideal instrument for pressure, velocity
and flow applications, achieving a 0.5% full scale accuracy on ranges from 0.25 to 100 in w.c. The Digihelic controller allows
the selection of pressure, velocity or volumetric flow operation in several commonly used engineering units. Two SPDT control
relays with adjustable dead bands are provided along with a scalable 4-20 mA process output. The Series DH provides extreme
flexibility in power usage by allowing 120/220 VAC and also 24 VDC power which is often used in control panels.
Applications for the DH Series include:
SCFM duct flow
Industrial ovens air flow
Filter status
Clean room pressurization
Fume hood air flow
Surgical and medical room pressurization
Damper and fan control
