Features
- For clean air only
- Wetted Materials
- Anemometer: ABS
- Tubing: Silicone
- Handle: Phenolic
- Dimensions:
- Tubing: 2 mm ID x 4.5 mm OD;
- Adapter: 2 mm OD to 3/16" OD connections
- Temperature Limits: 23 to 122°F (-5 to 50°C)
- K-Factor: 0.843
- Process Connections: 2 removable 5" (12.7 cm) tubing 3/16" ID

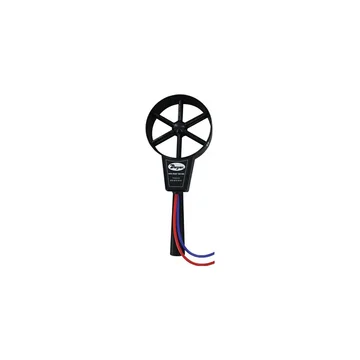

The Dwyer ANE-1 Differential Pressure Anemometer is a robust and durable bidirectional anemometer with no moving parts or sensing electronics. With the installed tubing, the ANE-1 connects easily to any manometer or applicable pressure sensing device and is capable of measuring a wide velocity range. The air velocity range and accuracy is dependent on the installed manometer, and the ANE-1 retains the accuracy as long as it is dust free. The ANE-1 is made from high quality ABS plastic, comes with a convenient handle, and includes 5' of blue and 5' of red silicone tubing (2 mm ID x 4.5 mm OD) with removable adapter sized 2 mm OD to 3/16" OD that has two removable 5" clear silicone 3/16" ID x 3/8" OD tubing versatile process options.
