Description / توضیحات
Features
Universal AC input / Full range
Built in active PFC function
Cooling by free air convection
Built-in constant current limiting circuit
Can be installed on DIN rail TS-35/7.5 or 15
UL 508 (industrial control equipment) approved
LED indicator for power on
100% full load burn-in test
Fixed switching frequency at 70KHz
Specifications

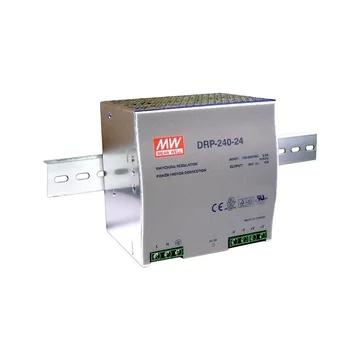

Series DRP-240
Description AC-DC Industrial DIN rail power supply; Output 24Vdc at 10A; metal case; DRP-240-24 is succeeded by NDR-240-24.
Application Installation UL 508
ITE EN/UL/IEC 60950
Technology AC/DC
Output Power (W) 240
Output Voltage (V) 24
Output Current (A) 10
Input Voltage (V) 110/230 universal input
85 - 264
Width (mm) 125.5
Height (mm) 125.2
Depth (mm) 100
Dimming Technology No dimming
Power Format DIN Rail
