Features
- Standard range from 0.025 to 36 inches. Range dependent on material and transducer type
- Range for automotive applications is 0.050 to 1.500 inches in casted materials
- Resolution: +/- .001 inches (0.01 mm)
- Velocity Range: 0.0120 to 0.7300 inches/μs (305 to 18,542 meters/sec)
- Display Update Rate: 10Hz
- T-101-400 NHRA Chassis Tubing Probe comes standard

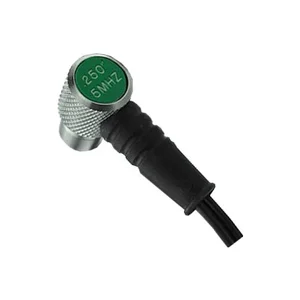

- Dual element transducer (1 to 10 MHz) with 4-foot cable
- Multi-function 7 segment 4.5-digit liquid crystal display
- Bar graph indicates repeatability of measurement
- Factory calibration traceable to NIST & MIL-STD-45662A
- 5 year limited warranty

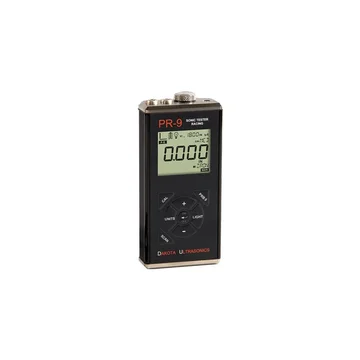

The Dakota Ultrasonics PR-9 is a precision, ultrasonic thickness tester with a dedicated design for the racing industry. It is ideal for quickly and accurately measuring and mapping the thickness of cylinders & decks on engine blocks, ports on heads, and chassis tubing for car builders and sanctioning bodies. The T-101-400 NHRA Chassis Tubing Probe comes standard. The PR-9 features three material calibration options: single point, two point, and target velocity for increased accuracy. It also includes a high scan feature that takes 100 readings per second making it easy to simply drag the transducer up the side of a cylinder wall to find the thinnest measurement over the area scanned. Cylinder mapping software is available for manually creating reports.
