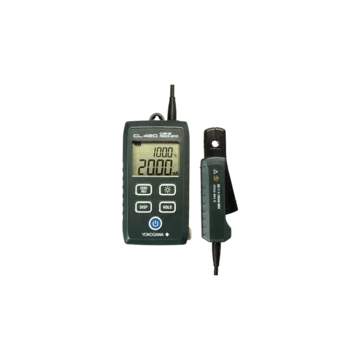

CL420 | Yokogawa Clamp-on Process Meter

Name: CL420 | Yokogawa Clamp-on Process Meter
Brand: Yokogawa
Price: 1716700000 IRR
Availability: InStock

برند :

Yokogawa

پارت نامبر :

CL420

شماره انبار :

ST-38764

زمان تحویل:

5 هفته

قیمت حدودی:

171,670,000 تومان

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، قیمت‌ها حدودی بوده. لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

تامین کننده

یاران صنعت فجر

ارسال به سراسر کشور

ضمانت اصالت و سلامت فیزیکی کالا

در مورد این محصول

ویژگی ها / Specifications

Model	CL420 - Clamp-on Process Meter
Display	4-digit LCD Numeric display
Battery life	Approx. 60hrs (continuous) backlight off and LED light off
Power supply	Four AA-size alkaline batteries (1.5V LR6)
Response time	Approx. 1.5 seconds (2.5 seconds when across the range)
Other functions	Data hold, Zero adjust function, Auto power off, LED Torch light, Back light display, Illuminant panel
Range switching	Auto range
Safety Standards	EN61010-1, EN61010-2-030, EN61010-2-032
Standard accessories	User s Manual, Batteries, Soft case (93045)
Withstanding voltage	2.21kV AC for 5 seconds (between the core and the case)
External dimensions and weight	61 (W) x 111 (H) x 40 (D) mm [Approx. 290g (including batteries)]
Diameter of measurable conductor	6mm diameter max.
Operating temperature and humidity	-10?C to +50?C 80% RH or less (no condensation)

Description / توضیحات

Specifications DC Current: 20 mA: 0.00 to?21.49mA (100 mA: ?21.0 to ?126.0mA) [Range and resolution]; ?(0.2%rdg+5dgt)? ?(1.0%rdg+5dgt) [Accuracy?] DC Voltage OUTPUT [10mV/mA]: 20 mA: 0.0 to?214.9mV (100 mA: ?210 to?1260mV); (DCA Accuracy)+(?0.5mV) (DCA Accuracy)+(?3mV) NOTE: At 23?C ?5?C, 45% to 75%RH. Measurement accuracy: ?(% of reading + digits). Terms of accuracy: Open and close the clamp sensor after power on and perform zero adjustment. The 20mA range accuracy assurance is the average of 5 times measuring.
