Carlo Gavazzi DBB51 Timer

Features

• 1 to 10s knob adjustable time range
• 5A SPDT relay output
• ≤ 0.2% repeatability
• ≥ 200ms reset
• Combined AC and DC power supply
  • 24 VDC
  • 24 to 240 VAC
• LED indication for relay status and power supply ON
• 250VAC rated insulation voltage
• PA66 housing

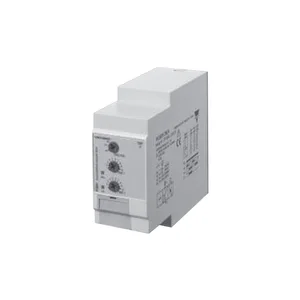

The Carlo Gavazzi DBB51 timer is a true delay on release timer with a knob adjustable time range from 1 to 10s. It has a combined AC and DC power supply, providing flexibility in installation and application. The DBB51 operates when the connected power supply is interrupted the set time period starts. At the end of the set time period, the relay will release. If power supply is reapplied before the relay releases the time is reset and the relay will remain on.
