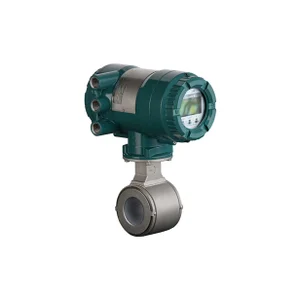

AXG010-CANF2BA1-AP114B-1JA12/SCT/L3/M01/CH | Yokogawa AXG Magnetic Flowmeter

Name: AXG010-CANF2BA1-AP114B-1JA12/SCT/L3/M01/CH | Yokogawa AXG Magnetic Flowmeter
Brand: Yokogawa
Price: 5284700000 IRR
Availability: InStock

برند :

Yokogawa

پارت نامبر :

AXG010-CANF2BA1-AP114B-1JA12/SCT/L3/M01/CH

شماره انبار :

ST-10642

زمان تحویل:

13 هفته

قیمت حدودی:

528,470,000 تومان

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، قیمت‌ها حدودی بوده. لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

تامین کننده

یاران صنعت فجر

ارسال به سراسر کشور

ضمانت اصالت و سلامت فیزیکی کالا

در مورد این محصول

ویژگی ها / Specifications

NOTE	This item is a replacement of AXG010-CAKF2BA1-AP114B-1JA12/SCT/L3/M01
Brand	Yokogawa
Model	AXG Magnetic Flowmeter
Condition	New & Original in Factory Packing
PFA Lining	Measuring Pipe, Electrodes, Grounding Devices (Grounding Rings Plate Type, Grounding Rings Electrode Type, or Built-in Grounding Electrodes), Flanges (for flange type), Mini-flanges (for wafer type), Adapters for Hygienic
Ceramics Tube	Grounding Devices (Grounding Rings Plate Type, or Grounding Rings Electrode Type), Union Joint
Factory Warranty	12 Months
Communication and I/O JA #	A, B, C, D, E, F, G, H, J, K, P, Q, R, S, T HART 7 and I/O (Type A to K, P to T, See separate table)
Plate size (Height x Width)	Approx. 12.5 mm x 40 mm (4.92 in. x 15.7 in.)
Process connection BA1 Stainless Steel Flange (F304)	ASME Class 150 Flange

Description / توضیحات

Model and Suffix Codes Model AXG010 Magnetic Flowmeter (10 mm/0.4 in) Use -C Explosion protection Construction A Integral flowmeter Explosion Protection NF2 Lining A PFA Lining Electrode P Platinum-Iridium Grounding Device 1 None Housing and Coating 1 Standard Material with Standard Coating Cable Entry 4 ISO M20×1.5 Female Accuracy B Standard Power Supply -1 100-240 V AC / 100-120 V DC Transmitter Wiring Terminal 1 M4 Screw-type Display 2 With Display (English, Chinese) Stainless Steel Tag Plate /SCT The pendant type tag plate (stainless steel 304) is wired around the flowmeter neck. Select optional code SCT when necessary in addition to that on the nameplate, on which the Tag No. is inscribed. Calibration Certificate (Level 3) /L3 The Declaration and the Primary Standard List are issued. Material Certificate /L3 Material certificate is issued. Target Parts: /CH
