Features
- 0.25 to 5,000Hz input frequency
- 4-20mA & 0-10V default analog output
- 0-5V, 1-5 & 2-10V options
- 16 bit analog output resolution
- 10-28VDC supply voltage rate
- Bluetooth communication

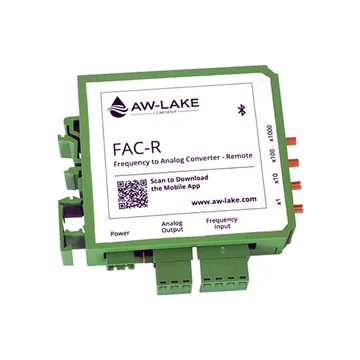

The AW-Lake FAC-R frequency to analog converter sends analog signals from frequency output sensors to a PLC or control system. It offers excellent linearity, high temperature stability, and long-term stability. Bluetooth communication enables remote troubleshooting, programming, and set up from a mobile device using the AWL Mobile Toolkit App.
The AWL Mobile Toolkit app allows you to view real time flow rates, input frequencies, analog outputs, and set up units, time base, K factor, and max flow rates. You will also be able to force one or both outputs to a certain value and select different output ranges.
