Features
- Measuring Accuracy: ±5% of full-scale
- Repeatability: ±1% of full-scale
- Flow Measuring Ranges: 0.5 to 5 GPM, 1 to 10 GPM, 1 to 15 GPM or 3 to 30 GPM
- Turn Down Ratio: 10:1 (All Ranges)
- Maximum Operating Pressure: 325 psig (22.4 Bar)
- Maximum Operating Temperature: 200°F (93°C) (Polycarbonate body); 250°F (121°C) (Polysulphone body)
- Filtration Requirements: 74 Micron (200 US Mesh) Minimum

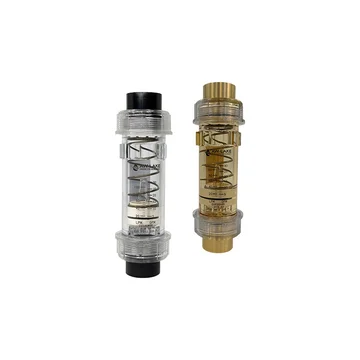

The AW-Lake ClearView flow meters provide an economical way to monitor municipal pressure water flows, observe case drain flows, and verify pump outputs. AW-Lake ClearView flow meters feature a compact and rugged design, measuring less than 8-1/4" long and 2-7/16" in diameter, with a rigid tube and union nut design. The AW-Lake ClearView flow meters allow for horizontal, vertical, or inverted installation as well.
With a ±5% full-scale accuracy, and a ±1% full-scale repeatability, AW-Lake ClearView flow meters offer a reliable solution to your flow monitoring needs. You can select from 0.5 to 5 GPM, 1 to 10 GPM, 1 to 15 GPM or 3 to 30 GPM, depending on which flow measuring range best fits your needs. All ranges of the AW-Lake ClearView flow meters feature a 10:1 turn down ratio.
Other Features of the AW-Lake ClearView Flow Meters
A variety of wetted materials of construction and media calibrations
A variable-area piston metering assembly
A high contrast scale/indicator
The AW-Lake ClearView Flow Meter has a variable-area piston to provide accurate, dependable flow rate indication. The high contrast scale/indicator provides an easy-to-read flow rate measuring resolution along with dual units of GPM and LPM.
