Features
- Choice of 0.25, 0.50 or 1.0% accuracy
- Pressure ranges from -15 psi through 10,000 psi
- -20 to 85°C temperature range
- CE mark is standard
- 17-4 pH and 316L SS diaphragm materials available
- Six output signals to choose from
- Optional absolute pressure ranges available
- Available externally adjustable zero and span access
- FM, cUL and ATEX listed

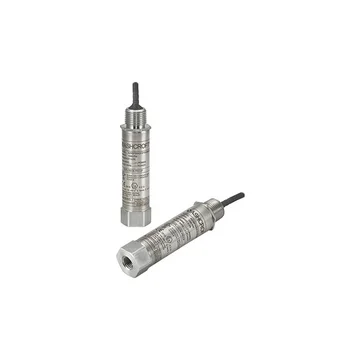

The Ashcroft A2X explosion/flame proof pressure transmitter is ideal for a broad spectrum of pressure sensing requirements where explosion/flame proof hazardous location ratings are required. Typical applications include: oil field equipment, upstream oil and gas production, natural gas compression and transfer control, and alternative energy projects.
Ashcroft A2X explosion/flame proof pressure transmitters are designed and manufactured to provide the user with accurate, reliable, and stable output data. This is accomplished through the use of an on board microprocessor, that is programmed during a unique digital compensation process, to provide extremely linear and precise performance over the entire specified pressure and temperature range. The A2X explosion/flame-proof pressure transmitter is FM, cUL and ATEX listed.
The Ashcroft A2X explosion/flame proof pressure transmitter is available in pressure ranges from -15 to 10,000 psi and 3 different levels of accuracy: 0.25%, 0.50% or 1.0% to suit your application needs. A CE mark is standard and the Ashcroft A2X features 316L stainless steel wetted materials, a 304 stainless steel case, six different output signals to choose from, and absolute pressure ranges are available.
