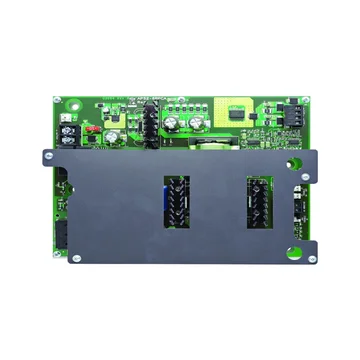

General The APS2-6R is a state-of-the-art, 150 watt, switching auxiliary power supply providing 24 VDC of filtered DC power. The APS2-6R provides three 24 VDC output circuits, rated for 6.0 Amps in alarm and 4.0 Amps continuous. It is used for the operation of peripheral audible/visual devices (alarm signaling appliances) for the Onyx Series control panels. The APS2-6R can also be used with Legacy panels. Please refer to the APS2-6R manual for more information. Features UL 864 Ninth Edition compliant Lightweight, compact design 120 or 220/240 VAC (@ 50/60 Hz) versions Output circuits with overload protection Built-in “brown-out” circuitry Diagnostic trouble LED Plug-in connector for in-cabinet applications and screw terminals for remote device applications Trouble supervision bus Shares battery and charger circuit with control panel Power-limited design, per UL requirements AC Fail supervision and reporting with field-selectable delay per UL 864 Heavy-duty clamp-type terminals accept up to 12 AWG (3.1 mm²) wire Battery voltage supervision Low battery disconnect Mounts in a standard CAB-3/XLS-ADT-CAB-4 Series cabinet.
