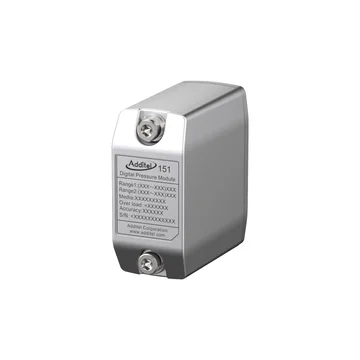

Additel ADT151 Digital Pressure Module

Features

• Operating temperature:
  • 0.01%FS accuracy: 59 to 95°F
  • Other accuracy: 14 to 122°F
• -22 to 158°F storage temperature
• Barometric options available
• Relative humidity: 10 to 95%RH, non-condensing
• 6mm pressure connection (O-ring, 3*1.5-NBR70, for external use only)
• Aluminum enclosure (for external use only)
• Fully temperature-compensated accuracy
• Two pressure ranges per module
• Advanced temperature compensation
• ISO 17025 accredited calibration and data included
• 1 year warranty

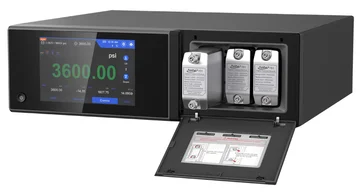

The Additel ADT151 Digital Pressure Module fits the ADT773, ADT783, and ADT793 pressure controllers, and can be swapped out as needed to meet changing requirements and workloads. The modules cover two separate pressure ranges and come with individual calibrations for each range. This allows for each module to accurately cover a wide range of pressure workloads. Each ADT151 module is available in three different accuracy levels (0.02% FS, 0.01% FS, and 0.01% of reading).  Each ADT pressure controller can fit multiple ADT151 pressure modules, and each controller is most compatible with a specific range of modules. The following tables map each model of the ADT151 to its suggested ADT pressure controller(s). Compound Gauge Pressure Module Model 1st Range 2nd Range Suggested Controller(s) GP15K 0 to 15,000 psi 0 to 6,000 psi ADT793 GP10K 0 to 10,000 psi 0 to 5,000 psi ADT793 CP6K -15 to 6,000 psi -15 to 3,000 psi ADT793 CP5K -15 to 5,000 psi -15 to 3,000 psi ADT793 CP3.6K -15 to 3,600 psi -15 to 1,500 psi ADT783-3.6K CP3K -15 to 3,000 psi -15 to 1,500 psi ADT783-3.6K CP2K -15 to 2,000 psi -15 to 1,000 psi ADT783-3.6K CP1K -15 to 1,000 psi -15 to 500 psi ADT783-1K, ADT783-3.6K CP500 -15 to 500 psi -15 to 300 psi ADT783-1K, ADT783-3.6K CP300 -15 to 300 psi -15 to 150 psi ADT783-1K, ADT783-3.6K CP150 -15 to 150 psi -15 to 60 psi ADT783-1K CP100 -15 to 100 psi -15 to 50 psi ADT783-1K CP50 -15 to 50 psi -15 to 30 psi ADT783-1K CP35 -15 to 35 psi -15 to 15 psi ADT783-1K CP30 -15 to 30 psi -15 to 15 psi ADT783-1K CP15 -15 to 15 psi -10 to 10 psi ADT783-1K Differential Pressure Module Model 1st Range 2nd Range Suggested Controller(s) DP1K -400 to 1,000 inH2O -400 to 400 inH2O ADT783-D DP800 -400 to 800 inH2O -400 to 400 inH2O ADT783-D DP400 -400 to 400 inH2O -200 to 200 inH2O ADT783-D, ADT773 DP300 -300 to 300 inH2O -150 to 150 inH2O ADT783-D, ADT773 DP200 -200 to 200 inH2O -100 to 100 inH2O ADT783-D, ADT773 DP150 -150 to 150 inH2O -100 to 100 inH2O ADT783-D, ADT773 DP100 -100 to 100 inH2O -50 to 50 inH2O ADT783-D, ADT773 DP50 -50 to 50 inH2O -30 to 30 inH2O ADT783-D, ADT773 DP30 -30 to 30 inH2O -20 to 20 inH2O ADT783-D, ADT773 DP20 -20 to 20 inH2O -10 to 10 inH2O ADT783-D, ADT773 DP10 -10 to 10 inH2O -5 to 5 inH2O ADT773 DP5 -5 to 5 inH2O -2 to 2 inH2O ADT773 DP2 -2 to 2 inH2O -1 to 1 inH2O ADT773 High-Precision Gauge Pressure Module Model Gauge Pressure Range Absolute Pressure Range Suggested Controller(s) GP15KM 0 to 15,000 psi 15 to 15,015 psi ADT793 GP10KM 0 to 10,000 psi 15 to 10,015 psi ADT793 CP6KM -15 to 6,000 psi 0 to 6,015 psi ADT793 CP5KM -15 to 5,000 psi 0 to 5,015 psi ADT793 CP3.6KM -15 to 3,600 psi 0 to 3,615 psi ADT793, ADT783-3.6K CP3KM -15 to 3,000 psi 0 to 3,015 psi ADT793, ADT783-3.6K CP2KM -15 to 2,000 psi 0 to 2,015 psi ADT783-3.6K CP1KM -15 to 1,000 psi 0 to 1,015 psi ADT783-1K, ADT783-3.6K CP500M -15 to 500 psi 0 to 515 psi ADT783-1K, ADT783-3.6K CP150M -15 to 150 psi 0 to 165 psi ADT783-1K, ADT783-3.6K CP100M -15 to 100 psi 0 to 115 psi ADT783-1K CP50M -15 to 50 psi 0 to 65 psi ADT783-1K CP30M -15 to 30 psi 0 to 45 psi ADT783-1K
