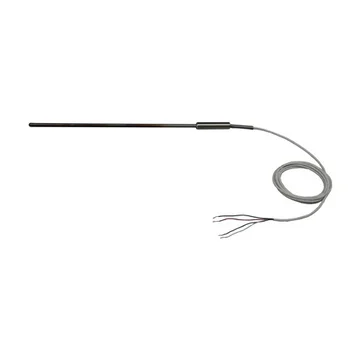

AccuMac AM1610 Precision Industrial PRT

Features

• -76 to 320°F (-60 to 160°C) temp range
• ±0.04°C drift rate
• Low stem conduction
• 316L SST sheath
• 100Ω nominal resistance
• Choose 9 or 12 inch probe length
  • 0.187 inch (4.75mm) diameter w/9in
  • 0.25 inch (6.35mm) diameter w/12in

AccuMac AM1610 Precision Industrial PRT uses a specially aged and tested, 5mm long sensing element. With very little heat loss along the sheath, it is a great tool for testing the vertical temperature uniformity of heat sources. The sensing element is designed to protect the platinum sensing wire from contamination at high temperatures, giving the device a high level of stability and repeatability. A uniquely designed support structure and filling material provides an excellent balance between the hysteresis effect, mechanical shock and thermal shock performance.
