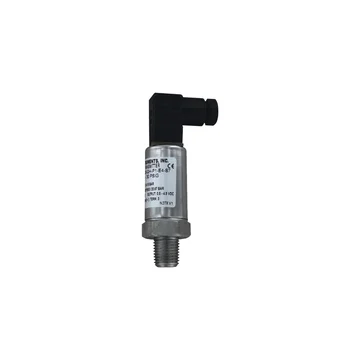

628-31-GH-P1-E2-S1 | Dwyer Series 628 Pressure Transmitters

پارت نامبر :

628-31-GH-P1-E2-S1

شماره انبار :

ST-44233

زمان تحویل:

8 هفته

قیمت حدودی:

15,840,000 تومان

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، قیمت‌ها حدودی بوده. لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

تامین کننده


یاران صنعت فجر

یاران صنعت فجر

ارسال به سراسر کشور

ضمانت اصالت و سلامت فیزیکی کالا

ویژگی ها / Specifications


Weight10 oz (283 g).
ServiceCompatible gases and liquids.
Stability1.0% FS/year (Typ.).
Output Signal4 to 20 mA, 0 to 5 VDC,1 to 5 VDC, 0 to 10 VDC, or 0.5 to 4.5 VDC, or selectable 0 to 5, 1 to 5, 0 to 10, 2 to 10 VDC for -CB option.
Response Time300 ms.
Thermal Effect±0.02% FS/°F. (includes zero and span).
Loop Resistance0 to 1000 Ohms max. R max = 50 (Vps-10) Ohms (4 to 20 mA output), 0 to 1250 Ohms max. Rmax = 50(Vps-10) Ohms (4 to 20 mA output with -CB option), 5K Ohms (0 to 5, 1 to 5, 1 to 6, 0 to 10, 2 to 10, 0.5 to 4.5 VDC output).
Pressure LimitsSee Catalog page.
Agency ApprovalsCE, NSF, UL.
Enclosure RatingNEMA 4X (IP66).
Wetted MaterialsType 316L SS.
Temperature Limit0 to 200°F (-18 to 93°C).
Power Requirements10 to 30 VDC (for 4 to 20 mA, 0 to 5, 1 to 5, 1 to 6 VDC outputs); 13 to 30 VDC (for 0 to 10, 2 to 10 VDC outputs); 5 VDC ±0.5 VDC (for 0.5 to 4.5 VDC ratio-metric output), 10 to 35 VDC (for 4 to 20 mA with -CB option); 13 to 35 VDC or isolated 16 to 33 VAC (for selectable output with -CB option).
Process ConnectionSee model chart.
Current Consumption38 mA maximum (for 4 to 20 mA output); 10 mA maximum (for 0 to 5, 1 to 5, 1 to 6, 0 to 10, 2 to 10, 0.5 to 4.5 VDC output); 140 mA maximum (for all 626/628/629-CH with optional LED).
Mounting OrientationMount in any position.
Electrical ConnectionsSee model chart.
Compensated Temperature Range0 to 175°F (-18 to 79°C).

Description / توضیحات


Specifications Accuracy: 626: 0.25% FS; 626: 0.20% RSS; 628: 1.0% FS; 628: 0.5% RSS; 626 Absolute Ranges: 0.5% FS; 626 absolute ranges: 0.30% RSS. (Includes linearity, hysteresis, and repeatability.)
