Description / توضیحات
Features

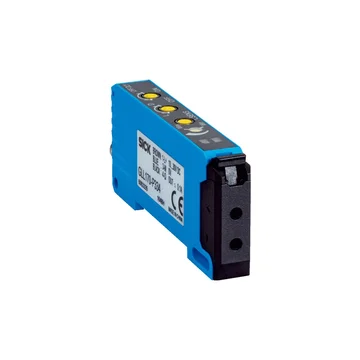

Device type Fiber-optic sensors
Device type detail Stand-alone
Dimensions (W x H x D) 10 mm x 31.7 mm x 72.5 mm
Housing design (light emission) Rectangular
Sensing range max. 0 mm ... 190 mm, Proximity system(1)(2)
0 mm ... 800 mm, Through-beam system(3)
Sensing range 0 mm ... 160 mm, Proximity system(1)(2)
0 mm ... 700 mm, Through-beam system(3)
Type of light Visible red light
Light source LED(4)
Wave length 632 nm
Adjustment Potentiometer, 8 turns(5)
Object with 90 % reflectance (referred to standard white, DIN 5033).
LL3-DK06.
LL3-TB02.
Sensitivity scale 230°.
