Description / توضیحات
Technical Specifications
Accessory group Plug connectors and cables
Accessory family Connection cables

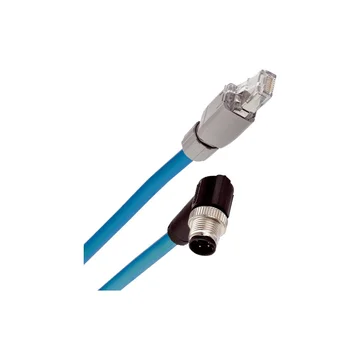

Connection type head A Male connector, RJ45, 4-pin, straight
Connection type head B Male connector, M12, 4-pin, angled, D-coded
Connector material TPU
Locking nut material Zinc die-cast, nickel-plated
Tightening torque 0.4 Nm
Cable 10 m, 4-wire, CAT5, CAT5e, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Blue
Cable diameter 6.4 mm
Conductor cross-section 2 x 2 x 0.14 mm²
Bending radius
Flexible use
Stationary position
> 8 x cable diameter
> 4 x cable diameter
Reference voltage = 50 V
Current loading 1 A
Signal type Ethernet
Transmission characteristics CAT5
Data transmission rate = 100 Mbit/s
Application Zones with oils and lubricants
Enclosure rating IP67 (M12), IP20 (RJ45)
Ambient operating temperature
Flexible use
Stationary position
Head
–20 °C ... +80 °C
–40 °C ... +80 °C
–25 °C ... +60 °C
