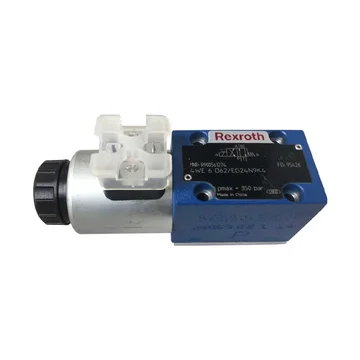

Directional valves type WE are solenoid operated directional spool valves. They control the start, stop, and direction of a flow. These directional valves basically consist of housing; one or two solenoids; control spool; and no, one, or two return springs. A full array of spools are possible with variations in voltage and electrical connection, all within the program. Flow and pressure rates from 4000 PSI to 5000 PSI and 21 GPM to 32 GPM cover a wide range of applications.
Features:
Size 6
For subplate mounting:
Porting pattern according to ISO 4401-3, NFPA T3.5.1M R1, and ANSI B93.7 D 03
Wet-pin AC or DC solenoids
Solenoids with detachable coil
Electrical connection as individual or central connection
Optional spool position monitoring (RE 24830)
Smooth switching characteristics
CSA certified part numbers in all sizes
