Ordering Information

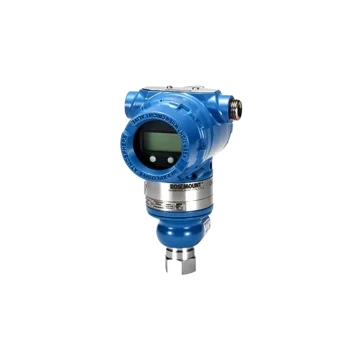

Model 3051T(1) In-Line Pressure Transmitter
Pressure type A(2) Absolute
Pressure range 1 0 to 30 psia (0 to 2,06 bar)
Transmitter output A(3) 4–20 mA with Digital Signal Based on HART Protocol
Process connection style 2C(4) G½ A DIN 16288 Male (Range 1–4 only)
Sensor fill fluid 1 Silicone
Calibration certification Q4 Calibration Certificate
Quality certification for safety QT(6) Safety certified to IEC 61508 with certificate of FMEDA
Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required.
Wireless Output (code X) only available in absolute measurement type (code A) in range 1-5 with 1/2 14 NPT process connection (code 2B), and polymer housing (code P).
Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output.
Wireless Output (code X) only available in G1/2 A DIN 16288 Male process connection (code 2C) with range 1-4, 316 SST isolating Diaphragm (code 2), Silicone Fill Fluid (code 1) and Housing Code (code P).
Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.
Only available with HART 4-20 mA output (output code A).
