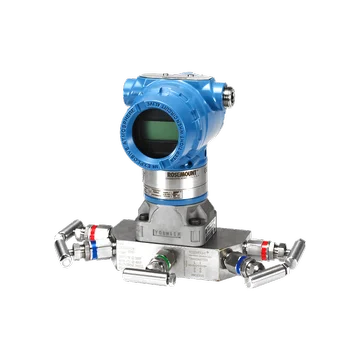

3051CD2A22A1AE5 | Rosemount 3051C Coplanar Pressure Transmitter

Name: 3051CD2A22A1AE5 | Rosemount 3051C Coplanar Pressure Transmitter
Brand: Rosemount
Price: 1115600000 IRR
Availability: InStock

برند :

Rosemount

پارت نامبر :

3051CD2A22A1AE5

شماره انبار :

ST-18608

زمان تحویل:

10 هفته

قیمت حدودی:

111,560,000 تومان

به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، قیمت‌ها حدودی بوده. لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.

تامین کننده

یاران صنعت فجر

ارسال به سراسر کشور

ضمانت اصالت و سلامت فیزیکی کالا

در مورد این محصول

ویژگی ها / Specifications

Model	3051C¹ - Coplanar Pressure Transmitter
O-ring	A - Glass-filled PTFE
Pressure range	2 - ?250 to 250 inH2O (-621,60 to 621,60 mbar)
Housing material	A - Aluminium; 1/2-14 NPT [Conduit entry size]
Measurement type	D - Differential
Sensor fill fluid	1 - Silicone
Transmitter output	A² - 4-20 mA with Digital Signal Based on HART Protocol
Isolating diaphragm	2³ - 316L SST
Product certifications	E5 - FM Explosion-proof, Dust Ignition-Proof
Materials of construction	2 -

Description / توضیحات

Ordering Information [Process flange type] Coplanar; [Flange material] SST; [Drain/vent] SST NOTE: Select Configuration Buttons (option code D4 or DZ) or Local Operator Interface (option code M4) if local configuration buttons are required. Option HR5 configures the HART output to HART Revision 5. Option HR7 configures the HART output to HART Revision 7. The device can be field configured to HART Revision 5 or 7 if desired. HART Revision 5 is the default HART output. Materials of Construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.

Attachment / فایل ضمیمه

Product Data Sheet: Rosemount 3051 Pressure Products

DP Flow Specification Sheet

Configuration Data Sheet: Rosemount DP Flow

Configuration Data Sheet: Rosemount 3051 Wireless Series

Configuration Data Sheet: Rosemount 3051 (legacy)

Manual: Rosemount 3051 Wireless Pressure Transmitters Pressure, Level, and Flow Solutions with WirelessHART? Protocol

Manual: Rosemount 3051 with 4-20mA and 1-5 Vdc Low Power HART protocols (legacy)

Manual: Rosemount 3051 with Profibus PA protocol

Quick Start Guide: Enhanced 3051 Upgrade Kit

Quick Start Guide: Rosemount 3051 Pressure Transmitter and Rosemount 3051CF DP Flowmeters with WirelessHART? Protocol

Quick Start Guide: Rosemount 3051 with 4-20mA and 1-5 Vdc Low Power HART protocols (legacy)

Quick Start Guide: Rosemount 3051 with 4-20mA HART (Revision 5 and 7)

Quick Start Guide: Rosemount 3051 with FOUNDATION? Fieldbus protocol

Quick Start Guide: Rosemount 3051 with Profibus PA protocol
