Features
Maximize flexibility with integral or remote mounting
Receive diagnostics for performance under entrained gas and batching from empty applications with MVD digital processing
Lower wiring costs and install easily and quickly
Eliminate the need for additional instruments with concentration and net flow measurement
Rely on custody-transfer approval and certification for SIL2 and SIL3
Gain real-time and in-process measurement integrity assurance with Smart Meter Verification
Gain access to additional diagnostics and process information without added wiring costs with WirelessHART™
Simplify flow-meter access with rugged Class I, Division 1 / Zone 1 housing with an optional local operator interface
Ordering Information

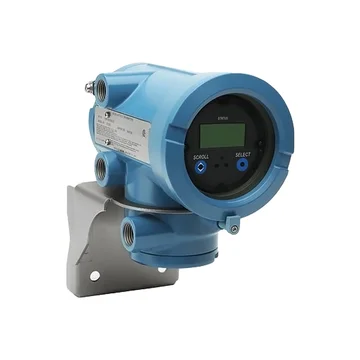

Model 2700 Micro Motion Coriolis MVDTM multivariable flow and density transmitter
Mounting C 9-wire remote transmitter with integral core processor (polyurethane-painted aluminum housing) includes 10 ft. [3m] CFEPS cable
Power 1 18 to 100 VDC and 85 to 265 VAC; self switching
Display 2 Backlit dual line display for CSA, UL, and IIB + H2 ATEX, IECEx and NEPSI ratings
Output C One mA; two configurable IO channels - custom configuration
Conduit Connections E M20 - no gland
Approvals C CSA (Canada only)
Languages E English installation manual
Software Options 1 Z Flow and density variables (standard)
Software Options 2 W¹ Weights and measures custody transfer
Factory Option Z Standard Product
Available with Output codes A, B, C.
