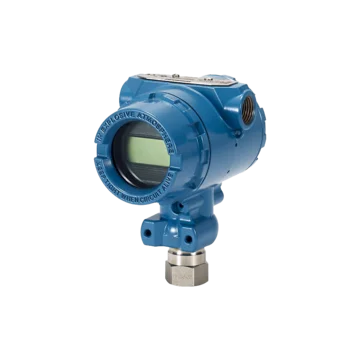

2088G2S22A1M7C6Q4 | Rosemount 2088 Gage Pressure Transmitter

Specifications Rangedown: Up to 50:1 Features Local Operator Interface (LOI) features straightforward menus and built-in configuration buttons for ease-of-use Factory-assembled and leak-checked integral manifold and remote seal solutions deliver a quick start-up Available protocols include 4-20 mA HART and 1-5 Vdc HART Low Power for application flexibility Lightweight, compact design allows for easy installation Ordering Information Model 2088 Pressure Transmitter Measurement type G Gage Pressure range 2 -14.7 to 150 psi (-1,01 to 10,3 bar) Transmitter output(1) S 4–20 mA dc/Digital HART Protocol Process connection A 1/2–14 NPT female Conduit entry 1 1/2–14 NPT M7 Product certifications C6 Canada Explosionproof, Intrinsic Safety, Division 2, and Dust-Ignitionproof Calibration certificate Q4 Calibration certificate HART Revision 5 is the default HART output. The Rosemount2088 with selectable HART can be factory or field configured to HART Revision 7. To order HART Revision 7 factory configured, add option code HR7. Materials of construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments. Made in Singapore
