Specifications
Rangedown: Up to 50:1
Features
Local Operator Interface (LOI) features straightforward menus and built-in configuration buttons for ease-of-use
Factory-assembled and leak-checked integral manifold and remote seal solutions deliver a quick start-up
Available protocols include 4-20 mA HART and 1-5 Vdc HART Low Power for application flexibility
Lightweight, compact design allows for easy installation
Ordering Information

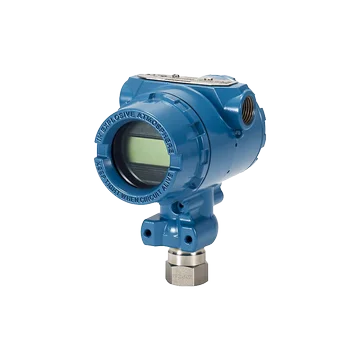

Model 2088 Pressure Transmitter
Measurement type A Absolute
Pressure range 2 -14.7 to 150 psi (-1,01 to 10,3 bar)
Transmitter output(1) S 4–20 mA dc/Digital HART Protocol
Process connection A 1/2–14 NPT female
Conduit entry 2(3) M20 1.5
Mounting brackets B4 SST mounting bracket with SST bolts
Pressure testing P1 Hydrostatic testing
Calibration certificate Q4 Calibration certificate
Quality calibration certificate traceability certification Q8 Material traceability certification per EN 10204 3.1
HART Revision configuration(4) HR5(5) Configured for HART Revision 5
HART Revision 5 is the default HART output. The Rosemount2088 with selectable HART can be factory or field configured to HART Revision 7. To order HART Revision 7 factory configured, add option code HR7.
Materials of construction comply with recommendations per NACE MR0175/ISO 15156 for sour oil field production environments. Environmental limits apply to certain materials. Consult latest standard for details. Selected materials also conform to NACE MR0103 for sour refining environments.
Not available with Low Power transmitter output code N.
Select configuration buttons (option code D4 or DZ) or local operator interface (option code M4) if local configuration buttons are required.
Configures the HART output to HART Revision 5. The device can be field configured to HART Revision 7 if needed.
