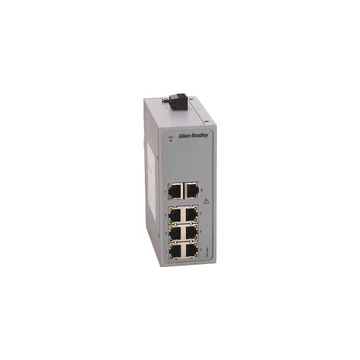

1783-US8T | Allen Bradley Stratix 2000 Switches
قیمت حدودی:
38,250,000 تومان
به دلیل سفارشی بودن کالاها و نوسانات قیمت ارز، قیمتها حدودی بوده. لطفا برای اطلاع از قیمت بروز کالا استعلام بگیرید.
تامین کننده

یاران صنعت فجر
ارسال به سراسر کشور
ضمانت اصالت و سلامت فیزیکی کالا
در مورد این محصول
ویژگی ها / Specifications
Brand | Allen Bradley |
Model | Stratix 2000 Switches |
IEC temp code | T5 |
SFP modules³ | No SFP slots |
Current rating | 361 mA |
Inrush current, max | 2.2 A |
Power Supply Voltage | 24V (18...60V DC, 18...30V AC 50/60 Hz), Class 2/SELV |
Enclosure type rating | None (open-type) |
Ethernet connection¹ | RJ45 connector according to IEC 60603-7, 2-pair or 4-pair Category 5e minimum cable according to TIA 568-B.1 or Category 5 cable according to ISO/IEC 24702 |
Power dissipation, max | 4.04 W @ 24V AC/DC |
Torque, max recommended | 1.82 N m (16 lb in) on power /functional earth connector |
North American temp code | T5 |
MAC addresses, max supported | 8 K |
Description / توضیحات
Technical Specifications - Stratix 2000 Switches
Isolation voltage:
30V (continuous), basic insulation type, power to network channels
No isolation between individual network channels
Type tested at 500V AC for 60 s
DC power connections:
0.75 2.5 mm² (18 14 AWG)
twisted-pair copper wire suitable for 30°C (86°F) above surrounding ambient temperature outside the enclosure
Functional earth connection:
2.5 mm² (14 AWG) copper wire suitable for 30°C (86°F) above surrounding ambient temperature outside the enclosure, with a suitable ring terminal
Wiring category²:
1 - on power ports
2 - on communication ports
NOTE:
See page 57 for recommended products.
Use this conductor category information for planning conductor routing.
For specifications of preinstalled SFP modules
