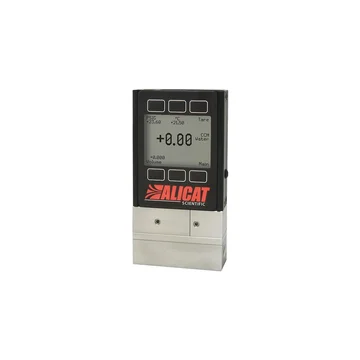

| Model | L Series liquid flow meter |
| Range | Standard ranges |
| Display | Digital display with push button interface |
| Flow Rate | 0.5 cubic centimeters per minute |
| Totalizer | No |
| Tare Delay | Without |
| Alarm Output | Without |
| Cable Length | Cable only needed for remote displays |
| Valve Option | Only available with controller selection |
| Alarm Setting | Without alarm |
| Seal Material | Viton standard |
| Flow Direction | Standard, left to right |
| Primary Output | 0 to 5 vdc output |
| Valve Location | Only available with controller selection |
| Bleedable Ports | Bleed ports for entrained gas |
| Oxygen Cleaning | Without |
| Dead Band Preset | Without |
| Averaging Options | Without |
| Conformal Coating | Without |
| Dead Band Preset % | Only available with when Dead Band Preset is selected |
| Internal Barometer | Without |
| Power-Up Set Point | Only available with controller |
| Power-Up Streaming | Standard |
| Process Connection | Standard |
| Tare Delay Setting | Without |
| Backlit at Power Up | With backlight at display |
| Hazardous Approvals | Not included |
| Power Over Profibus | Without |
| Electrical Connector | Standard |
| Pulsed Analog Output | Without |
| Detached Remote Valve | Only available with controller selection |
| Industrial Power Jack | Without |
| Parameter at Power Up | Standard |
| Profibus Unit Address | Without |
| Separate Ground Point | Without |
| Valve Drive on Device | Only available with controller |
| Analog Setpoint Inputs | Not available with current Communications Protocol selection |
| Communications Protocol | RS-232 (standard) |
| Closed Loop Ramp Control | Only available with controller |
| Primary Output Parameter | Volumetric flow |
| RS-232/485 Streaming Rate | Standard |
| Secondary Output Parameter | None |
| Custom Calibration Pressure | Without |
| Liquid To Be Calibrated For | Standard |
| Secondary Output (optional) | No secondary output |
| Closed Loop Pressure Control | Only available with controller |
| Digital Control Preselection | Not included |
| Bidirectional Flow Calibration | Without |
| Rolamite Valve Orifice Pattern | Only available with R ranges |
| Custom Calibration Inlet Pressure | Without |
| Valve Drive in Serial Drive Frame | Only available with controller |
| Water and Dust Resistant Enclosure | Without |
