Features
- High-resolution color touchscreen
- Real-time measurement and display
- 0 to 24mA
- 0 to 12V
- 0 to 99mV
- 20 to 4000 Hz
- -454°F to +3308°F
- 0 to 4 billion pulses
- Thermocouples
- RTDs
- 1 GB stores 100,000,000 readings
- No required software
- IP20 rating
- CE compliant

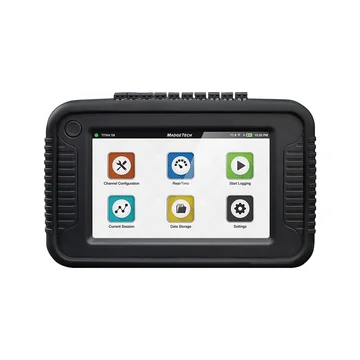

The entire MadgeTech Titan S8 device is handheld, meaning data measurement, equipment validation and process monitoring can travel wherever they are needed inside or

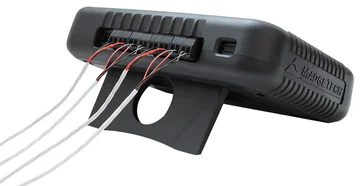

outside of a facility. It has eight probe channels and a color touchscreen interface. Hold the MadgeTech Titan S8 confidently with one hand while placing leads and probes,
and view data from multiple leads or locations at the same time. This versatile logger supports thermocouple, RTD or thermistor probes to measure current, voltage,
temperature and pulse in real time. This adaptability makes Titan S8 perfect for any industrial engineer, quality assurance professional, compliance officer or automotive
technician. The Titan S8 will automatically calculate FFT for users in real time providing exact frequencies to make post analysis data easily available for both
vibrational and electrical applications.

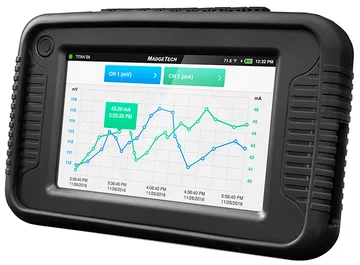

Unlike many data loggers, the Titan S8 is a complete, all-in-one solution that does not require a PC or any downloaded software for operation. The easy-to-use interface
allows users to view real-time data, including automatically generated graphs, in full color to enable in-the-moment analysis and decision-making. Use the USB port to
extract data instantaneously for upload and analysis. Analyze data in Microsoft Excel without the need for additional software.
The Titan S8 provides programmable channel configurations, user-configurable engineering units and alarms for benchmark or undesirable readings. Any user-created settings
can be stored within the logger, saving time and eliminating the need for constant reprogramming. The rechargeable lithium battery pack provides 10 hours of continuous
on-screen sampling or 100 hours of stand-by mode.
