Features
- 20 to 120°F (-5 to 50°C) temp range
- Up to 1000 psi (67 bar) operating pressure
- Only 600 psi (42 bar) for special fluids
- Accuracy of ±0.5% with oils
- 5-digit LCD display of quarts, pints, gallons, or liters
- 99,999 max totalizer or dispense volume
- Minimum 20,000 cycles on battery life (4AA)
- Automatic shutoff at preset amount

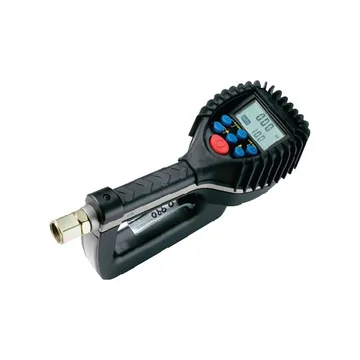

The Badger Meter EPM-2 oval gear meter is designed to dispense motor oil (SAE 5 to 50), gear oil (SAE 80 to 240), automatic transmission fluid, antifreeze (ethylene glycol) solution, and hydraulic fluid. The preset feature will allow users to perform other service tasks while fluid is dispensed. It is available in standard model which can only hold a single preset (99.9 units max), or the advanced version with six programmable presets (999 units max).
The advanced model also adds viewable flow rate readings in liters or US gallons per minute and a history function for the last five batches.
Badger Meter EPM-2 Oval Gear Meter Applications
Fleet maintenance shops
Industrial assembly
Quick lube facilities
Dealerships
Construction and mining equipment
General automotive service centers
Specialty service and repair shops
