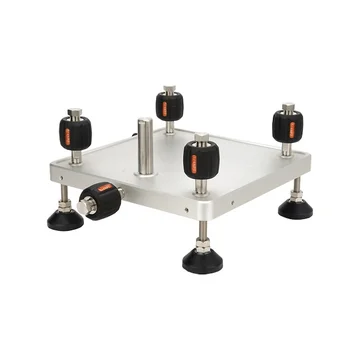

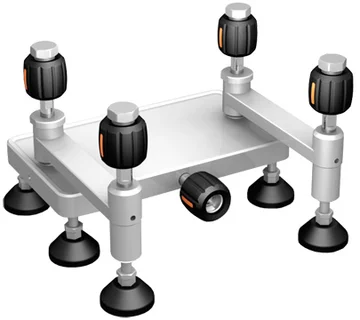

Additel 12X Series Pressure Manifolds

Features

• Pneumatic or hydraulic manifolds
• Pneumatic pressure range:
  • -15 to 3000 psi (-1 to 200 bar)
• Hydraulic pressure range:
  • -15 to 15,000 psi (-1 to 1000 bar)
• Connection options:
  • 1/4 NPT female to four 1/4 NPT female
  • 1/2 NPT female to four 1/2 NPT female
  • M20 × 1.5 female to four M20 × 1.5 female
  • 1/4 BSP female to four 1/4 BSP female

The Additel 12X series pressure manifolds are designed for expanding pressure test ports during pressure calibration. The pneumatic pressure manifold has a built in filter to prevent contaminates introduced by the device being tested. Each manifold has four pre-installed hand-tight quick connectors. These pressure manifolds connect without the use of wrenches or Teflon tape, increasing your productivity when using calibration pumps, pressure controllers, deadweight testers, or piston gauges.
